Vacuum Furnace Hot Zone Relines

Q: What’s the typical downtime for a reline?

A standard hot zone reline can take anywhere from 1 to 2 weeks , depending on the furnace type and extent of wear. Our team works efficiently to minimize downtime and can schedule relines to align with your production cycles.

Q: How does a reline impact energy savings?

A degraded hot zone leads to heat loss and higher energy consumption . Relining restores insulation efficiency, reducing energy consumption by up to 20%. This helps maintain consistent processing temperatures, improving both energy efficiency and product quality .

Q: How long does a hot zone reline last?

With proper maintenance and usage, a reline can last 3 to 7 years . Factors such as thermal cycling, contamination, and operating conditions will influence longevity.

The hot zone is the heart of your vacuum furnace. It’s insulated lining ensures uniform heating and minimized heat loss. However, over time, factors such as thermal cycling, prolonged high temperatures, oxidation, contamination, and mechanical stress can cause hot zone degradation.

Hot zone degradation has several affects on your furnace. For example, it can increase operational costs due to wasted heat and increased energy consumption. This can also negatively impact furnace vacuum, leading to longer pump-down times and compromised product quality.

Signs your furnace hot-Zone needs a reline

Recognizing the early signs of hot zone degradation can help avoid costly unplanned downtime and maintain efficiency. Watch for these signs:

Uneven heating
Increased energy consumption
Visible wear and tear (cracks, discoloration)
Longer heating cycles
Inconsistent temperature control

If you're noticing any of these issues, your furnace may be due for a reline. We offer hot zone solutions for all makes and models of vacuum furnaces, with the added capability to reverse engineer and enhance existing designs—improving energy efficiency, ease of maintenance, and service life.

Schedule an inspection

Founded in 1985, VFE has over 40 years of industry experience and a proven track record of successfully delivering hot zone refurbishments and relines for all makes and models of vacuum furnaces. We support a wide range of applications across different industries including demanding industries like aerospace, helping customers meet stringent quality standards such as those required by NADCAP.

Our hot zone solutions cover a broad operating temperature range, starting at 500 °C and reaching up to 2500 °C.

Recognized for our commitment to quality and value engineering, our highly skilled UK-based engineers manage the entire refurbishment process—whether on-site or at our West Midlands facility—from disassembly and reline to reinstallation, commissioning, and performance testing.

We offer hot zone solutions for all makes and models of vacuum furnaces, with the added capability to reverse engineer and enhance existing designs—improving energy efficiency, ease of maintenance, and service life.

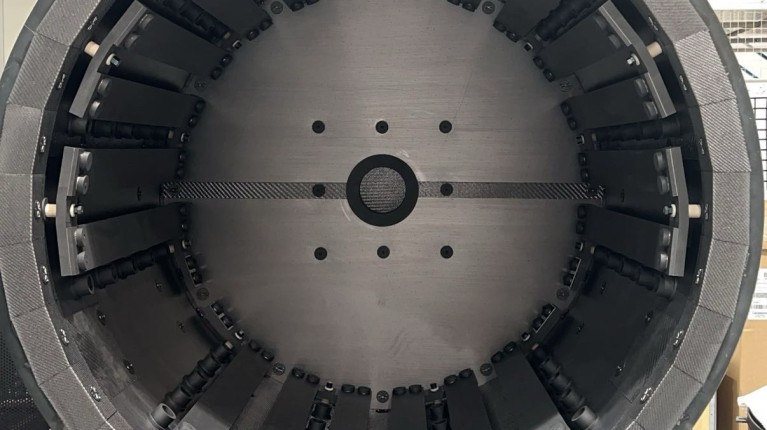

Graphite Hot Zones

We use only the highest quality enhanced graphite materials and Carbon Fibre Composites (CFC), ensuring compatibility with a wide range of metallurgical processes, including:

Vacuum heat treatment
Vacuum brazing
Solution heat treatment of single crystals
Vacuum sintering
High-temperature ceramic sintering
Metal Injection Moulding (MIM)

Metal Hot Zones

All-metal hot zones enable higher vacuum levels and are essential for processes requiring super-clean, non-contaminating environments. At VFE, we refurbish metal hot zones across all furnace models and offer a wide selection of metallic insulating materials.

Materials We Work With

We cater to a wide range of materials when refurbishing existing hot zones. Our expertise covers, but is not limited to:

Graphite-Based Materials	Metallic Components	Composite & Ceramic Materials
Graphite insulation board (20mm, 30mm, 40mm)	Molybdenum sheets, wires, nuts, washers	Carbon fibre composite sheets & plates
Graphite foil sheets	Stainless steel elements	Ceramic insulation
Graphite felt	Molybdenum elements, gas deflectors	Carbon fibre composite gas deflectors
Graphite elements, gas deflectors	Molybdenum hearth assemblies, hangers	Carbon fibre composite hearth assemblies
Graphite hearth assemblies	Tantalum and tungsten-based components	Carbon fibre composite angles & channels

In addition to relines, we provide ancillary items such as:

Hot zone casing
Hearth assemblies
Heater set arrangements

All available in a variety of materials tailored to the specific requirements of your process.

We can also refurbish existing casings for extended lifespan and enhanced performance.

FAQ

How often should a furnace be relined?

The frequency of hot zone relining depends on the furnace's usage, operating temperatures, and the materials processed. Typically, relining is recommended every 3 to 5 years for heavily used furnaces, or 5-7 years for vacuum furnaces used moderately. Regular inspections can help identify the need for earlier intervention.

What’s the typical downtime for a reline?

A standard hot zone reline can take anywhere from 1 to 2 weeks, depending on the furnace type and extent of wear. Our team works efficiently to minimize downtime and can schedule relines to align with your production cycles.

How does a reline impact energy savings?

A degraded hot zone leads to heat loss and higher energy consumption. Relining restores insulation efficiency, reducing energy consumption by up to 20%. This helps maintain consistent processing temperatures, improving both energy efficiency and product quality.

How long does a hot zone reline last?

With proper maintenance and usage, a reline can last 3 to 7 years. Factors such as thermal cycling, contamination, and operating conditions will influence longevity.
